Hydrogen Electrolyzer
Description

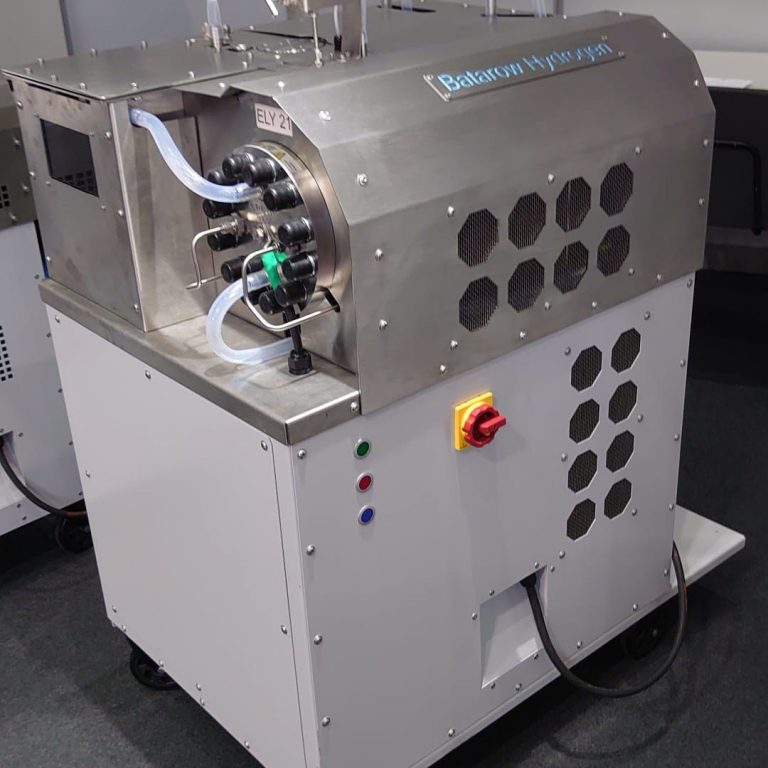

The ELY-21 is a versatile hydrogen electrolyzer available in various performance classes. It produces high-purity hydrogen (H₂ ≥ 99.9 mol%) and features user-friendly operation via the integrated touch display. The system is delivered ready for use and can be easily commissioned at the touch of a button.
A Modbus interface is provided for sensor monitoring.
Technical Data
| ELY-21 | ||
|---|---|---|
|
Typ |
ELY-22 10kW |
|
|
Revision |
A |
|
|
Technology |
PEM |
|
|
Power consumption |
10 kW |
|
|
Production volume H₂ |
3,90 kg/day
|
|
|
Pressure H₂
|
max. 100 bar |
|
|
Production volume O₂ |
32,9 kg/day |
|
|
Pressure O₂ |
Ambient pressure |
|
|
Electrical connection |
3 Phasen, 400V, 32A CEE Stecker mit 5m Kabel |
|
|
Elektrischer Input |
228 kWh/day |
|
|
Water consumption |
45 l/day |
|
|
Price excluding VAT |
59.950,-€ |
|

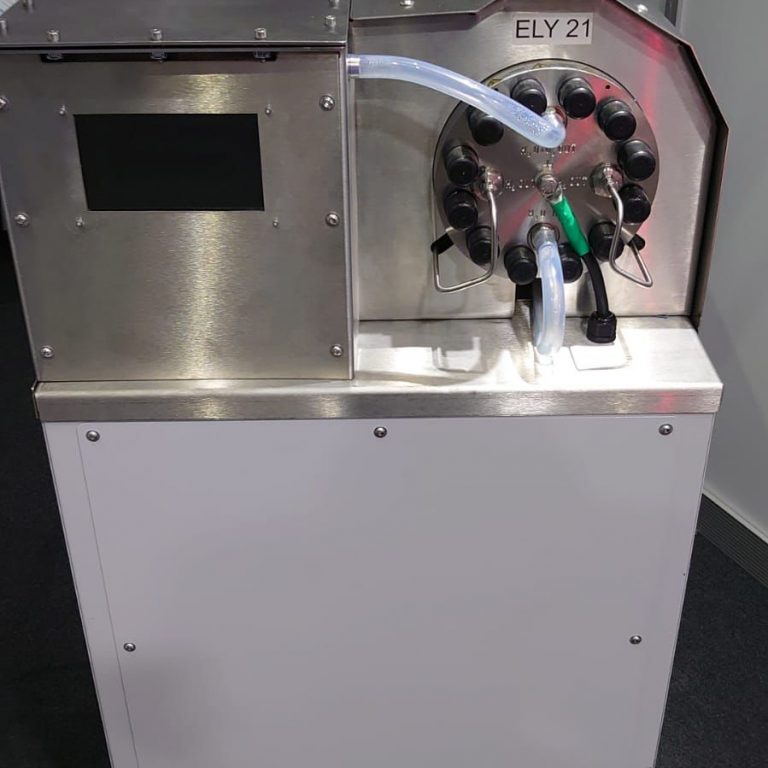

Media connections
| ELY-21 Media connections | ||
|---|---|---|
|
Connection |
Description |
|
|
Waterconnection |
1x Hose nozzle Ø11mm |
|
|
Hydrogen discharge |
1x 6mm Clamping ring |
|
|
Oxygen discharge |
1x Hoze nozzle Ø11mm |
|
|
Purge Hydrogen |
1x Hoze nozzle Ø11mm |
|
|
Water cooling pre-installation |
2x Hoze nozzle Ø11mm |
|
Integrated Components
- Process tank
Stack pump
Electrolysis stack
Hydrogen de-watering
Overpressure protection (Hydrogen
Aircooling (optional water cooling can be decoupled)
Power electronics (inclusive 25% degradation reserve)
- Control
Installation conditions & maintenance
Installation conditions:
- Location: Well-ventilated area
- Weather/frost protection: not included
| Maintenance schedule ELY-21 | ||
|---|---|---|
|
Interval |
Content |
|
|
12 months / upon commissioning |
Pressure retention test & filter replacement by Batarow Hydrogen |
|
The ELY 21 is an ideal solution for applications that require reliable and mobile hydrogen generation. Contact us for more information or a customized quote!
